TROUBLE SHOOTING DEV...

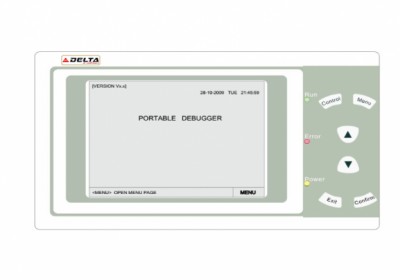

89VTC Series Trouble Shooting Device
With this device you can program, change
settings, review that all units are operating
correct. It will tell you all the parameters
for each indoor and outdoor units. All
Technitians that work with VRF units
should have one.
START UP DEVICE
89VSP Series Star Up Device
It is a MUST to have this Device
when first turning ON a VRF System
ONE WAY CASSETTE VRF...

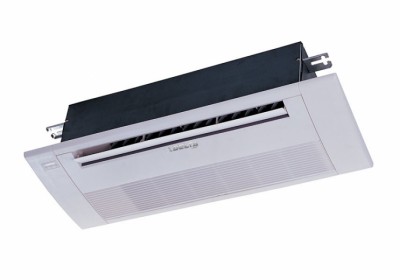

80CO Series One Way VRF Cassette
Cooling: 7,500-12,300 Btuh (2.2-3.6 KW)
Heating : 8,900-13,600 Btuh (2.6-4.0 KW)

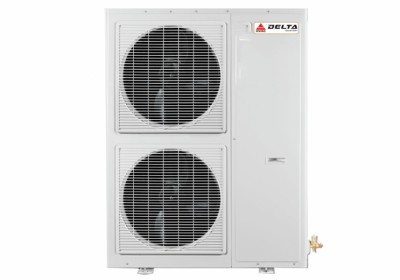

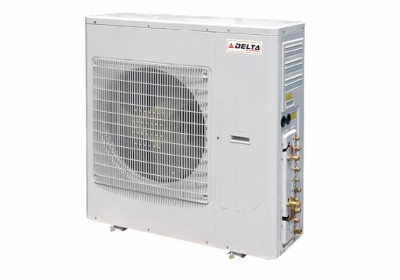

MINI VRF OUTDOOR UNI...
81HM Series Mini VRF
Condensing Unit VRF Heat Pump
Cooling: 17,100-73,700 Btuh (2.8-40.0 KW)
Heating : 17,100-73,700 Btuh (2.8-40.0 KW)
LOW STATIC SLIM VRF...
80LP Series Low Statics Slim VRF Fan Coil With Pump
Cooling : 7,500-24,200 Btuh ( 2.2-7.1 KW )
Heating : 8,900-27,300 Btuh ( 2.6-8.0 KW )
INSPIRE Ultra Univer...
85UT Series Inspire Ultra Universal M16
Split System Inverter Heat Pump
Cooling : 5,118-30,000 Btuh (1.5 - 8.8 KW)
Heating : 5,460-34,000 Btuh ( 1.6-8.8 KW )
ETL & AHRI Listed
Inspire Ultra Invert...
86HS Series Inspire Ultra Inverter Multi Pipe Super VRF SMV16
Condensing Unit Heat Pump
Cooling : 3,412-61,416 Btuh (1.0 - 18.0 KW)
Heating : 4,094-63,122 Btuh ( 1.2-18.5 KW )
ETL & AHRI Listed
Inspire Ultra Invert...
86HM Series Inspire Ultra Inverter Multi Pipe VRF M16
Condensing Unit Inverter Heat Pump
Cooling : 7,000-46,430 Btuh (2.1 - 13.6 KW)
Heating : 8,530-47,768 Btuh (2.5-14.0 KW)
ETL & AHRI Listed
INSPIRE Ultra High W...
85WC Series Inspire Ultra High Wall M16
Split System Inverter Heat Pump
Cooling : 5,118-30,000 Btuh (1.5 - 8.8 kW)
Heating : 5,460-34,000 Btuh ( 1.6-9.9 KW )
ETL & AHRI Listed
INSPIRE Ultra Fan Co...
85PF Series Inspire Ultra Fan Coil M16
Split System Inverter Heat Pump
Cooling : 5,118-30,000 Btuh (1.5 - 8.8 KW)
Heating : 5,460-34,000 Btuh ( 1.6-9.9 KW )
ETL & AHRI Listed
INSPIRE Ultra Casset...
85CM/85CS Series Inspire Ultra Cassette M16
Split System Inverter Heat Pump
Cooling : 6,824-30,000 Btuh (2.0 - 8.8 kW)
Heating : 6,150-34,000 Btuh ( 1.8-9.9 KW )
ETL & AHRI Listed
HIGH WALL VRF INDOO...
80HW Series High Wall VRF Indoor Unit
Cooling: 7,500-24,200 Btuh (2.2-7.1 KW)
Heating : 8,900-27,300 Btuh ( 2.6-8.0 KW )
HIGH STATIC VRF FAN...
80PP Series High Static VRF Fan Coil With Pump
Cooling : 30,700-47,800 Btuh ( 9.0-14.0 KW )
Heating : 34,100-54,600 Btuh ( 10.0-16.0 KW )
HIGH CAPACITY HORIZO...
80AH Series High Capacity
Horizontal Air Handler Unit
Cooling: 76,400-96,000 Btuh ( 22.4-28.2 KW )
Heating : 85,500-107,000 Btuh (25.0-31.5 KW)
HEAT RECOVERY FRESH...

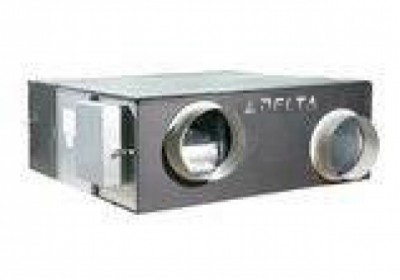

80RV Series Heat Recovery Ventilators
200-1800 CFM
When adding Fresh Air to the building
normally you have to Increase the
Capacity of the A/C units. But when
you use a Heat Recovery unit you
do not have to increase it, because
it Pre-Cools the air coming in.

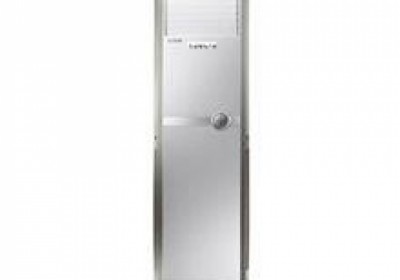

FREE STANDING UPRIGH...
80SF Series Floor Standing VRF Indoor Unit
Cooling: 38,200-54,600Btuh ( 11.2-16.0 KW )
Heating : 42,700-61,500 Btuh (12.5-18.0 KW)

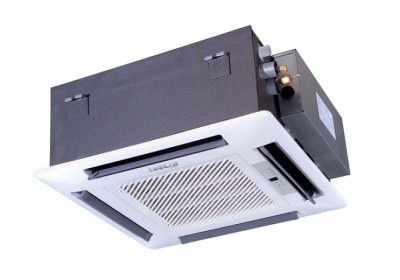

FOUR WAY STANDARD CA...
80CS Series Standard 4 Way Cassette VRF
Cooling: 9,600-47,800 Btuh (2.8-14.0 KW)
Heating : 10,900-54,600 Btuh ( 3.2-16.0 KW )
FOUR WAY MINI CASSET...
80CM Series 4 Way Mini Cassette VRF
Cooling: 7,500Btuh-15,400 Btuh (2.2-4.5 KW)
Heating : 8,900Btuh-17,100 Btuh (2.6-5.0 KW)
FLOOR/CEILING UNIVER...
80UT Series Floor/Ceiling Universal VRF Indoor Unit
Cooling: 9,600Btuh-54,600 Btuh (2.8-16.0 KW)
Heating : 10,900-61,500 Btuh ( 3.2-18.0 KW )

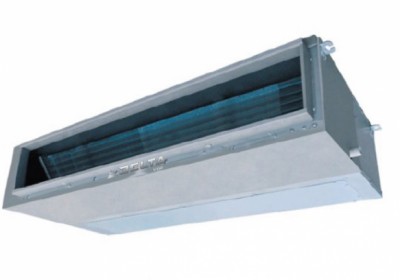

FAN COIL WITH PLENUM...
80PF Series Fan Coil With Plenum VRF Indoor Unit
Cooling: 7,500-47,800 Btuh ( 2.2-14.0 KW )
Heating : 8,900-54,600 Btuh (2.6-16.0 KW)

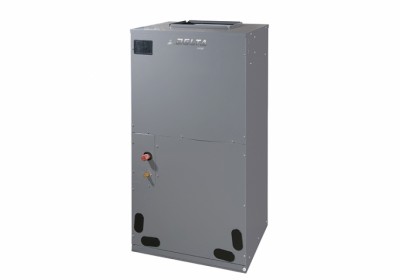

CONVERTIBLE AIR HAND...
80DF Series Convertible Air Handler Indoor Unit
Cooling: 24,200-54,600 Btuh ( 7.1-16.0 KW )
Heating : 27,300-61,500 Btuh (8.0-18.0 KW)

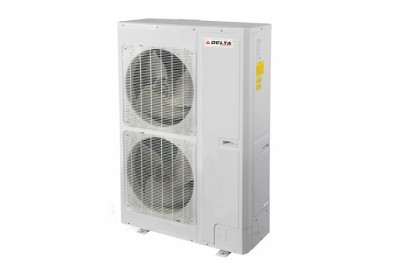

COMBO VRF OUTDOOR U...
82VC Series Combo VRF
Condensing Unit Inverter Heat Pump
Cooling: 38,200-207,200 Btuh (5.5-50.0 KW)
Heating : 38,200-207,200 Btuh (5.5-50.0 KW)
In Combo
Cooling : 38,200-828,800 Btuh ( 5.5-200.0 KW )
Heating : 38,200-828,800 Btuh ( 5.5-200.0 KW )

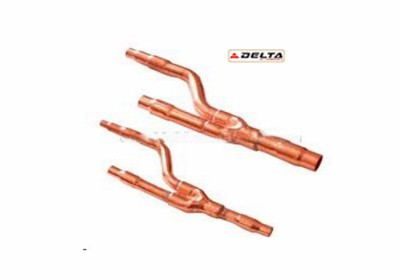

BRANCH PIPE KITS FOR...
89FCK/89CCK Series Branch Pipe Kits For VRF Units
Capacity: 9,700-490,00 Btuh
There are 5 branches for Indoor units
with 5 different capacities and there is
one branch pipe for outdoor units
one capacity for all of them.

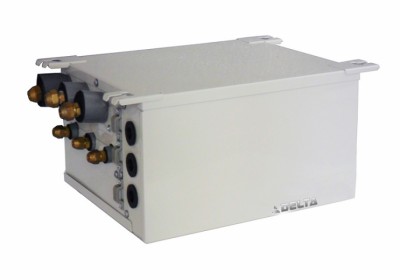

BRANCH MODULE
89FBMJ202, 89FBMJ203, 89FBMJ205
These
Modules are to be used with
86HS Series
condenser for connecting
to 2,
3 or 5
evaporator units.
when using
more than 1 module,
a branch
pipe kit # 89FCK970 will be required.
Branch modules carry Electronic Expansion
Valves
